Through type bus washing machine

Main products:reciprocating automatic car washing machine series, tunnel type automatic car washing machine series, bus automatic car washing machine series, contactless car washing machine series, etc.
Contacts：Mr. Liu
TEL：+8617163667888
EMAIL：zh_xcj@163.com
Our company sincerely invites you to visit our enterprise. We look forward to your arrival and are confident that we will leave a deep impression on you. Our company always adheres to the customer's needs as the guide, aiming to create high quality, high reliability, and high degree of automation. We take it as our responsibility to provide services and develop and produce various models of car washing equipment for customers based on industry core technology and years of experience. We believe that through this visit, you will have a better understanding of our company's strength and competitive advantages。 If you agree to visit, please contact us by email or phone to confirm the time。

COMMODITY INFORMATION

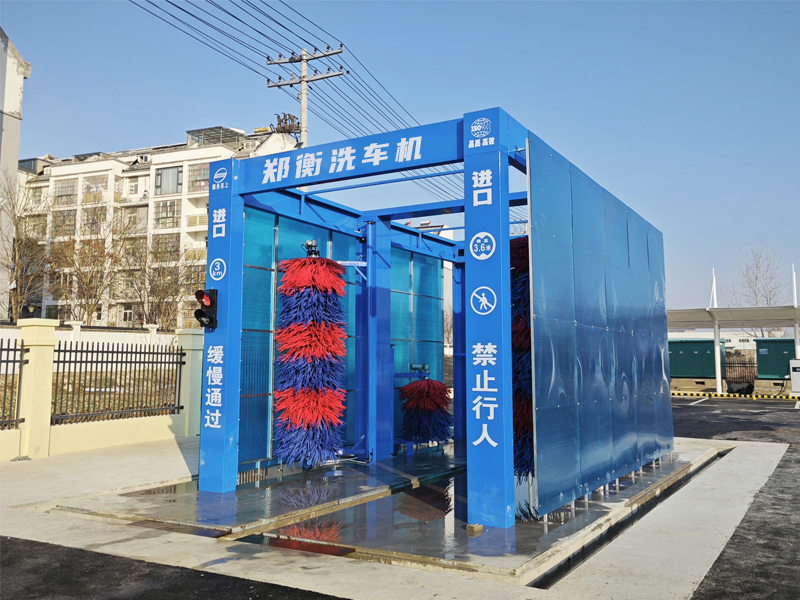

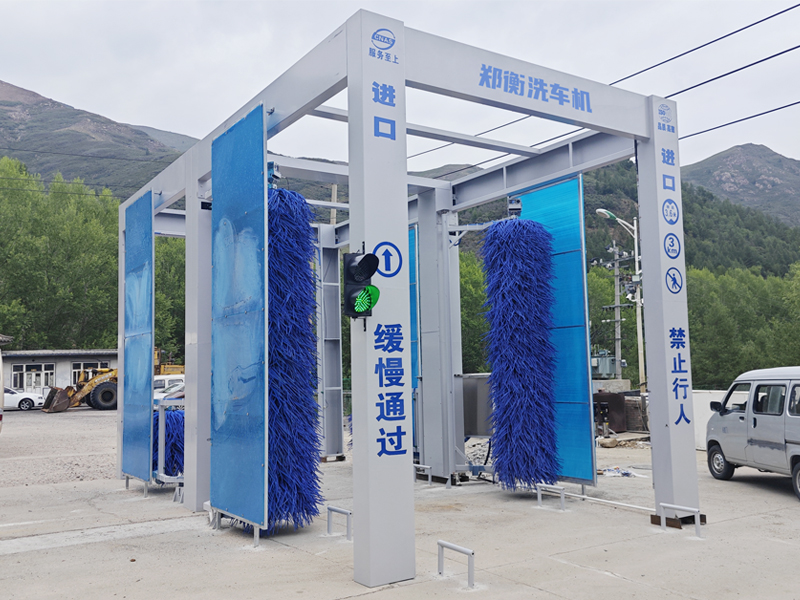

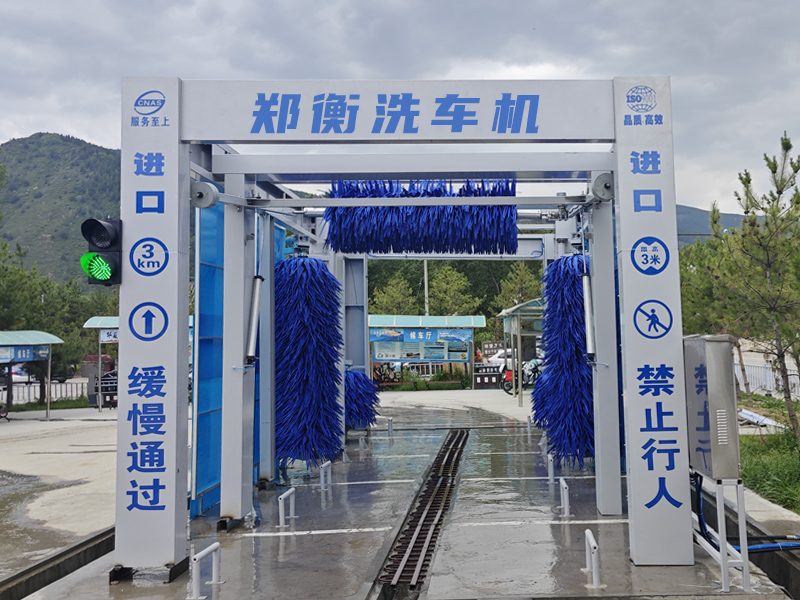

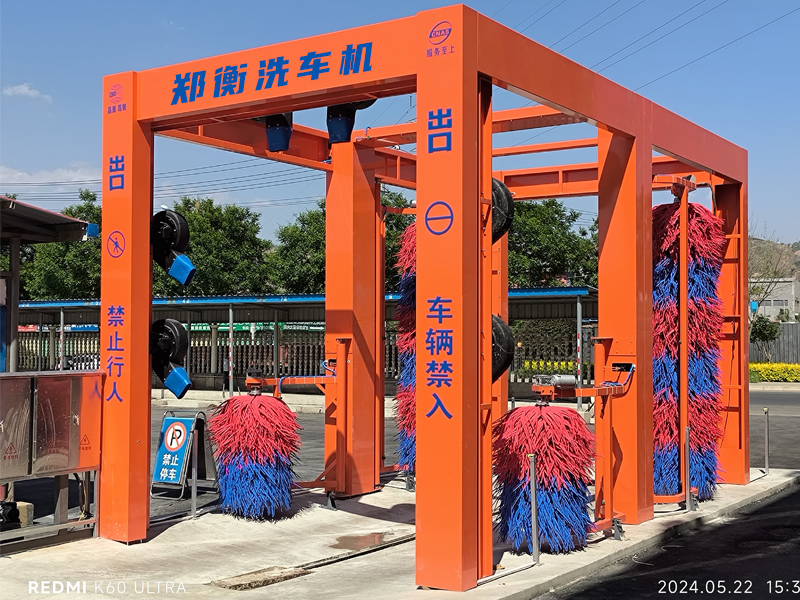

Channel-type bus washing machine
Device Model	4-MTD	6-MTD
Device dimensions	Length 8000 * Width 5000 * Height 4600 (mm)	about：Length 11000 * Width 5000 * Height 4600 (mm)
Cleaning size	Unlimited length * width 2600 * height 4000 (mm)	2600 wide x 4000 high (length can be adjusted according to the cleaning vehicle)
power supply	380V 50HZ 11KW	380V 50Hz 11Kw
car wash speed	About 180L/vehicle (ordinary bus)	About 180L/vehicle (ordinary bus)
Cleaning speed	1-3 minutes per vehicle	1-3 minutes per vehicle
Vertical brush	2individual	4individual
Skirt brush	2individual	2individual
Applicable Models	Bus, minibus, bus, etc

Working process of fully automatic through-type bus washing machine

1、The driver drives the vehicle at a constant speed through the car washing area.

2、The car body is cleaned in multiple directions through the functions of photoelectric detection of vehicle position, high-pressure water shower+foam cleaning agent, left and right vertical brushes, high-pressure water shower, etc.

3、Wastewater reuse equipment (optional) has a large treatment capacity and is more energy-efficient.

4、Cleaning methods: Brushing with a non porous foam, cleaning with a cleaning agent, and rinsing with high-pressure rain.

5、Protection functions: automatic induction spray system, automatic current control system, automatic detection and alarm system, emergency stop protection device, sub item action technology, winter antifreeze technology, automated on-site management system..
